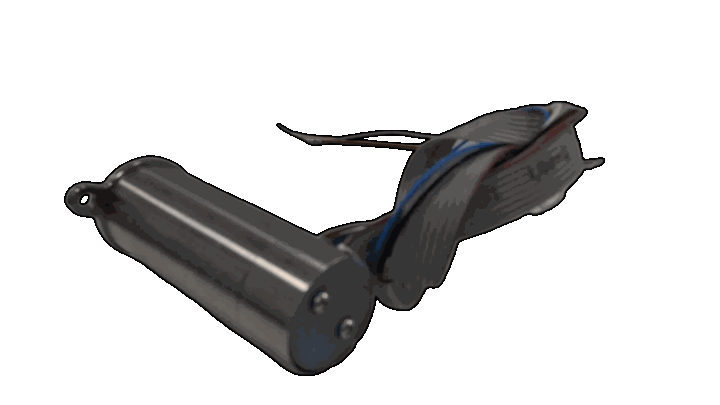

The 22mm 4-pole brushless DC motor (BL2252-24-P4-16200) provides high torque density and stable performance in a compact design. With a rated speed of 15,150 RPM and rated torque of 40.4 mN.m, this motor is ideal for high-speed and high-precision applications. The 4-pole design offers lower torque ripple and smoother motion, making it suitable for medical devices, pumps, robotics, and industrial automation.
| Motor OD (mm) | Pole | Motor body length (mm) | Power (W) | Voltage (V) | No Load Speed (RPM) | Resistance/ Phase (Ω) |
Inductance/ Phase (uH) |
No Load Current (A) | Rated Speed (RPM) | Rated Torque (mN.m) | Rated Current (A) | Rotor Inertia (gcm²) | Hall Option | Motor Only Code | CAD (DWG) | STEP | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 22 | 4 | 52 | 61.2 | 24 | 16400 | 0.59 | 32 | 0.38 | 15150 | 40.4 | 3.3 | 7.4 | Yes | BL2252-24-P4-16200 104005201 | View | Download | Preview | Download | Preview | Download |
