4-pole construction provides smoother operation, higher torque density, and better control performance compared to 2-pole motors. Typical applications include water pumps, medical devices, precision instruments, robotics actuators, and portable equipment.
| Motor OD (mm) | Pole | Motor body length (mm) | Power (W) | Voltage (V) | No Load Speed (RPM) | Resistance/ Phase (Ω) |
Inductance/ Phase (uH) |
No Load Current (A) | Rated Speed (RPM) | Rated Torque (mN.m) | Rated Current (A) | Rotor Inertia (gcm²) | Hall Option | Motor Only Code | CAD | STEP | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

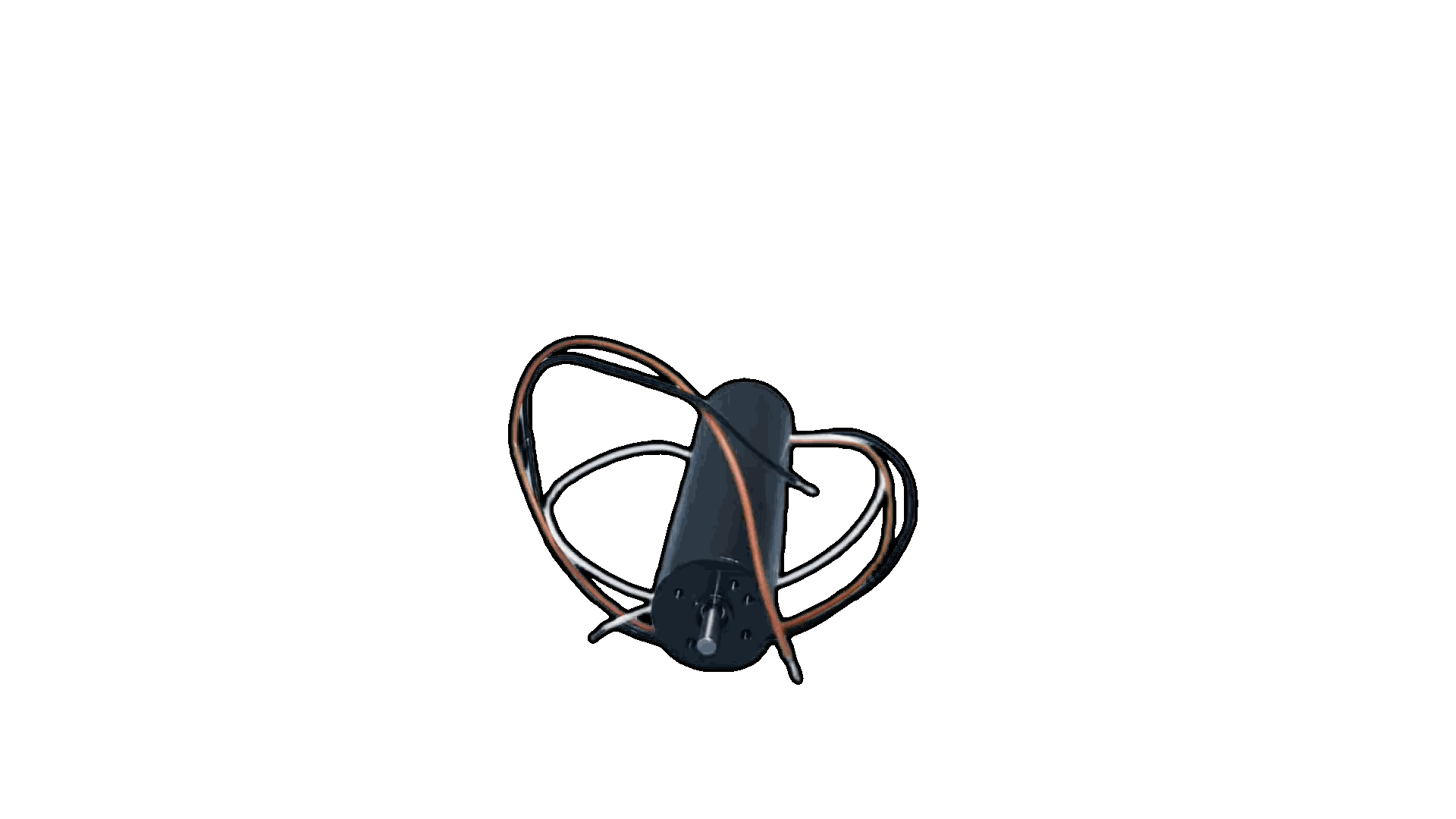

| 20 | 4 | 82 | 15.7 | 24 | 5000 | 3.7 | 214 | 0.14 | 4364 | 36 | 1 | 13 | Yes | BL2082-24-P4-5000 252008201 | View | Download | View | Download | View | Download |
