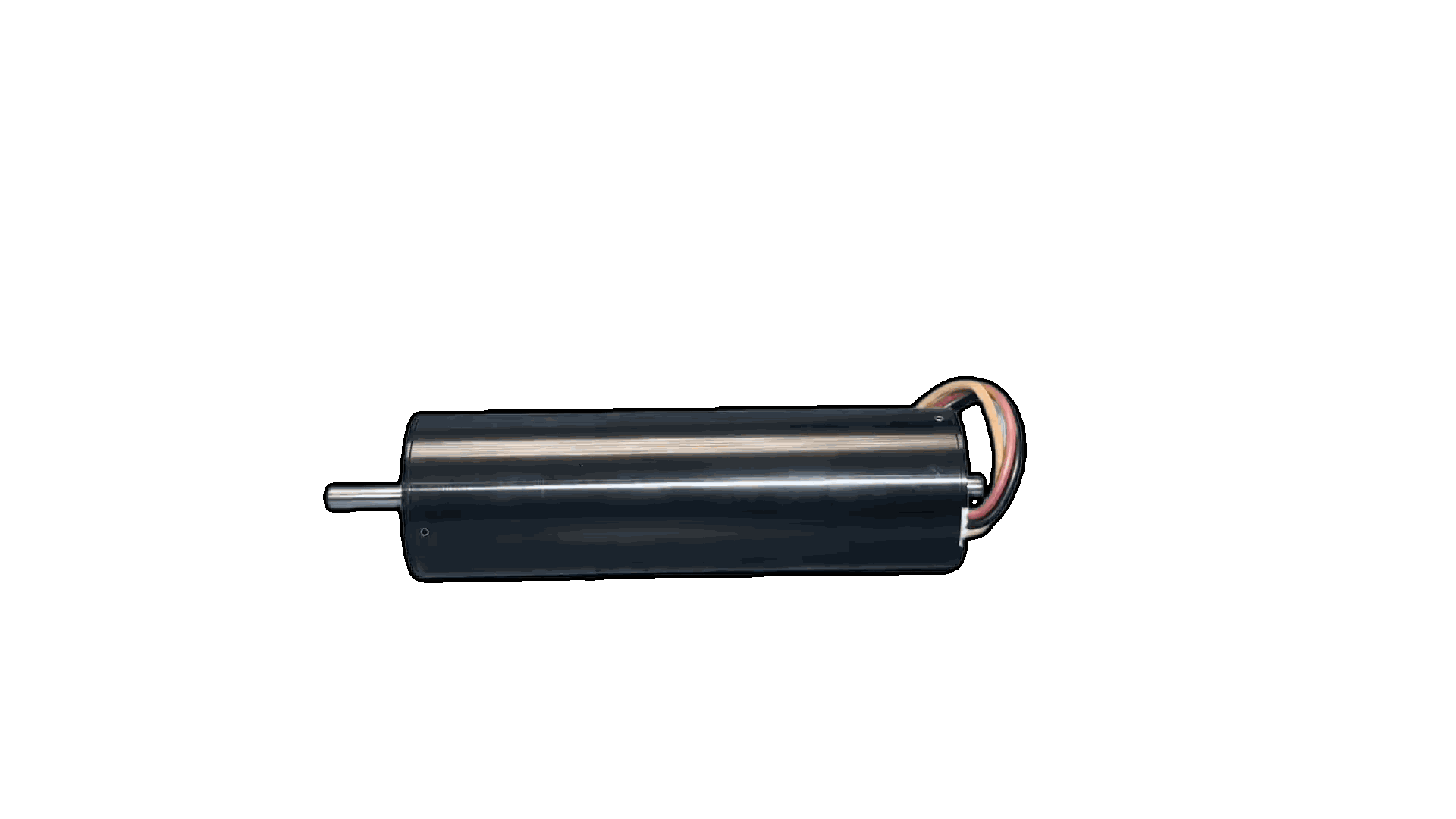

BL32142-48-P4 brushless 4-pole motor series, 32mm OD, 48V. High torque density, precision control, CAD & PDF datasheets provided.
| Motor OD (mm) | Pole | Motor body length (mm) | Power (W) | Voltage (V) | No Load Speed (RPM) | Resistance/ Phase (Ω) | Inductance/ Phase (uH) |
No Load Current (A) | Rated Speed (RPM) | Rated Torque (mN.m) | Rated Current (A) | Rotor Inertia (gcm²) | Hall Option | Motor Only Code | CAD (DWG) | STEP | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 32 | 4 | 142 | 340 | 48 | 6600 | 1.35 | 135 | 0.18 | 4615 | 735 | 10.9 | 121.5 | Yes | BL32142-48-P4-6420 256014201 | Preview | Download | Preview | Download | Preview | Download |
