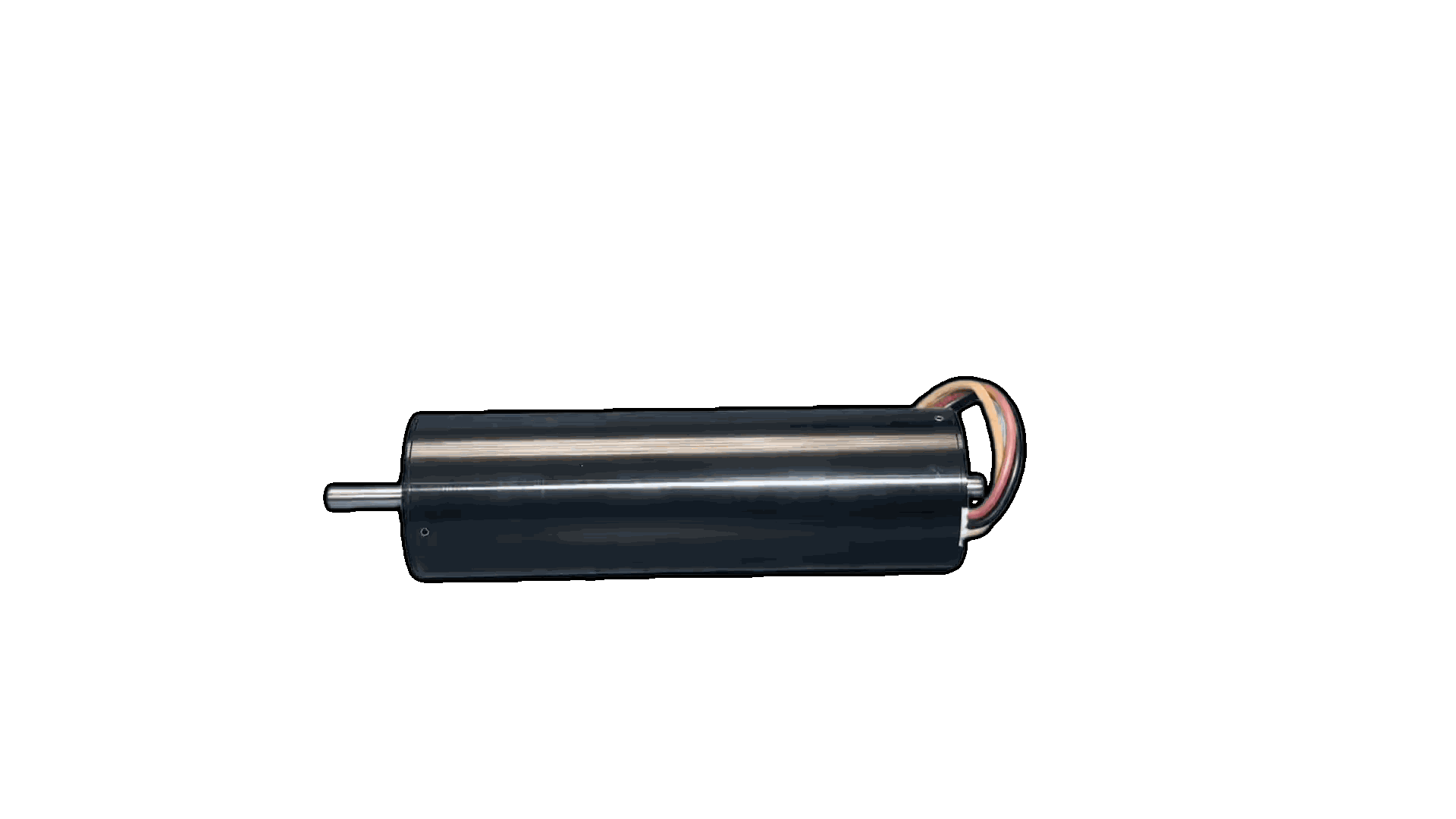

EC-max 30 Series
The EC-Max 30 series offers a balanced combination of power and compact size. Engineered for reliability and longevity, these brushless DC motors provide smooth torque delivery with minimal vibration. Ideal for medical devices, industrial automation, and mobile robots, the EC-Max 30 series ensures consistent performance in both continuous and intermittent operations. Its modular design allows for easy integration into various applications.
| Motor OD (mm) | Pole | Motor body length (mm) | Power (W) | Voltage (V) | No Load Speed (RPM) | Resistance/ Phase (Ω) | Inductance/ Phase (uH) | No Load Current (A) | Rated Speed (RPM) | Rated Torque (mN.m) | Rated Current (A) | Rotor Inertia (gcm²) | Hall Option | Motor Only Code | View PDF | Download PDF | View CAD (DWG) | Download CAD (DWG) | View STEP | Download STEP | SLDPRT Download |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30 | 2 | 64 | 67 | 24 | 9500 | 1.35 | 230 | 0.2 | 7608 | 83 | 3.7 | 12.25 | Yes | BL3064-24-P2-9500 105506412 | View | Download | View | Download | View | Download |
